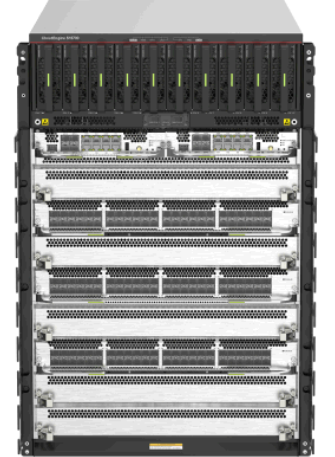

Item
|
Specification
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
- 703 mm x 442 mm x 874 mm (27.68 in. x 17.4 in. x 34.41 in.), dimensions of the chassis body
- 703 mm x 483 mm x 985 mm (27.68 in. x 19.02 in. x 38.78 in.), including mounting ears and cable management frames
|
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
990 mm x 770 mm x 1150 mm (38.98 in. x 30.31 in. x 45.28 in.)
|
|
Chassis height [U]
|
15.8 U
|
|
Cabinet installation standards
|
A610
|
|
Weight without packaging [kg(lb)]
|
129.8 kg (286.16 lb)
|
|
Weight without packaging (full configuration) [kg(lb)]
|
253.1 kg (557.99 lb)
|
|
Weight with packaging [kg(lb)]
|
177 kg (390.21 lb)
|
|
Maximum power consumption [W]
|
8260 W
|
|
Maximum heat dissipation [BTU/hour]
|
28183 BTU/hour
|
|
MTBF [year]
|
34.55 year
|
|
MTTR [hour]
|
1 hour
|
|
Availability
|
0.9999971582
|
|
Number of MPU slots
|
2
|
|
Number of SFU slots
|
9
|
|
Number of service board slots
|
8
|
|
Number of power slots
|
10
|
|
Number of fans modules
|
3
|
|
Redundant MPUs
|
1:1
|
|
Redundant Switch fabrics
|
N+M
|
|
Redundant power supply
|
- Dual-input power supply system: N+1 backup is recommended.
- Single-input power supply system: N+1 backup
Dual-input power supply is recommended to ensure reliability.
|
|
Redundant fans
|
Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
|
|
Long-term operating temperature [°C(°F)]
|
0°C to 40°C (32°F to 140°F)
|
|
Restriction on the operating temperature variation rate [°C(°F)]
|
When the altitude is 1800 m to 5000 m (5905.44 ft. to 16404.00 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
|
Storage temperature [°C(°F)]
|
-40°C to +70°C (-40°F to +158°F)
|
|
Long-term operating relative humidity [RH]
|
5% RH to 85% RH (non-condensing)
|
|
Long-term operating altitude [m(ft.)]
|
≤ 5000 m (16404 ft.)
|
|
Storage altitude [m(ft.)]
|
≤ 5000 m (16404 ft.)
|
|
Rated input voltage [V]
|
- AC: 220 V; 50 Hz/60 Hz
- High-voltage DC (HVDC): 240 V/380 V
|
|
Input voltage range [V]
|
- AC: 176 V to 290 V; 45 Hz to 65 Hz
- High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V
|
|
Heat dissipation mode
|
Drawing air for heat dissipation
|
|
Airflow direction
|
Front-to-rear airflow
|
|
PoE
|
Not supported
|
|
Maximum power output capability (including the system power output and PoE power output) [W]
|
- 9+1 backup: 3000 W x 9 = 27000 W
- 10+0 backup: 3000 W x 10 = 30000 W
|
|
Certification
|
- EMC certification
- Safety certification
- Manufacturing certification
|
