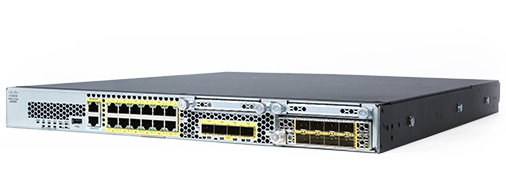

Межсетевой экран Cisco Firepower FPR2130-NGFW-K9

Features

2130

Throughput: FW + AVC

4.75 Gbps

Throughput: AVC + IPS

4.75 Gbps

Maximum concurrent sessions, with AVC

2 million

Maximum new connections per second, with AVC

24,000

IPSec VPN Throughput (1024B TCP w/Fastpath)

1.5 Gbps

Maximum VPN Peers

7500

Cisco Firepower Device Manager (local management)

Yes

Centralized management

Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator

Application Visibility and Control (AVC)

Standard, supporting more than 4000 applications, as well as geolocations, users, and websites

AVC: OpenAppID support for custom, open source, application detectors

Standard

Cisco Security Intelligence

Standard, with IP, URL, and DNS threat intelligence

Cisco Firepower NGIPS

Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence

Cisco AMP for Networks

Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco AMP for Endpoints is also optionally available

Cisco AMP Threat Grid sandboxing

Available

URL Filtering: number of categories

More than 80

URL Filtering: number of URLs categorized

More than 280 million

Automated threat feed and IPS signature updates

Yes: class-leading Collective Security Intelligence (CSI)

Third-party and open-source ecosystem

Open API for integrations with third-party products; Snort^® and OpenAppID community resources for new and specific threats

Stateful inspection firewall throughput¹

10 Gbps

Stateful inspection firewall throughput (multiprotocol)²

5 Gbps

Concurrent firewall connections

2 million

New connections per second

40000

IPsec VPN throughput (450B UDP L2L test)

1 Gbps

IPsec/Cisco AnyConnect/Apex site-to-site VPN peers

7500

Maximum number of VLANs

750

Security contexts (included; maximum)

2; 30

High availability

Active/active and active/standby

Scalability

VPN Load Balancing

Centralized management

Centralized Management (CSM) not currently supported for 2100 series

Adaptive Security Device Manager

Web-based, local management for small-scale deployments

Dimensions (H x W x D)

1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm)

Form factor (rack units)

1RU

I/O module slots

1 NM slot

Integrated I/O

12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces

Network modules

(FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module

Maximum number of interfaces

Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+)

Integrated network management ports

1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)

Serial port

1 x RJ-45 console

USB

1 x USB 2.0 Type-A (500mA)

Storage

1x 200 GB, 1x spare slot (for MSP)

Power supplies

• Configuration

Single 400W AC, Dual 400W AC optional. Single/Dual 350W DC optional¹

• AC input voltage

100 to 240V AC

• AC maximum input current

< 6A at 100V

• AC maximum output power

400W

• AC frequency

50 to 60 Hz

• AC efficiency

>89% at 50% load

• DC input voltage

-48V to -60VDC

• DC maximum input current

< 12.5A at -48V

• DC maximum output power

350W

• DC efficiency

>88% at 50% load

• Redundancy

1+1 AC or DC with dual supplies

Fans

1 hot-swappable fan module (with 4 fans)²

Noise

56 dBA @ 25C

77 dBA at highest system performance.

Rack mountable

Yes. Mount rails included (4-post EIA-310-D rack)

Weight

19.4 lb (8.8 kg) 1 x power supplies, 1 x NM, 1 x fan module, 2x SSDs

Temperature: operating

32 to 104°F (0 to 40°C) or NEBS operation (see below)³

Temperature: nonoperating

-4 to 149°F (-20 to 65°C)

Humidity: operating

10 to 85% noncondensing

Humidity: nonoperating

5 to 95% noncondensing

Altitude: operating

10,000 ft (max) or NEBS operation (see below)³

Altitude: nonoperating

40,000 ft (max)

NEBS operation (FPR-2130 Only)³

Operating altitude: 0 to 13,000 ft (3962 m)

Operating temperature:

Long term: 0 to 45°C, up to 6,000 ft (1829 m)

Long term: 0 to 35°C, 6,000 to 13,000 ft (1829 to 3964 m)

Short term: -5 to 55°C, up to 6,000 ft (1829 m)
