Redundant EX8216 DC system configuration: 16-slot chassis with passive midplane and 2x fan trays, 2x routing engines, 8x switch fabr ic modules, 4x dual-input 3000W DC PSUs, and all necessary blank panels

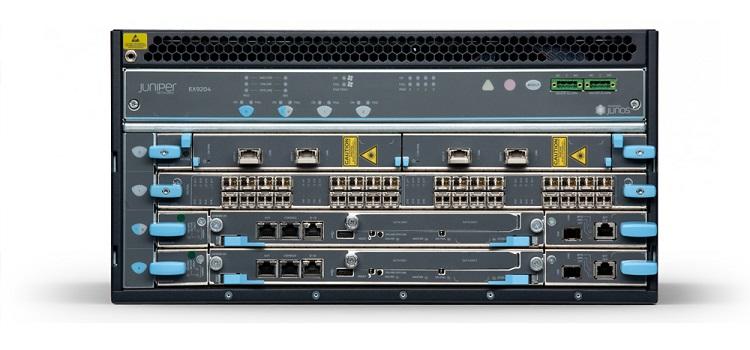

Base EX9204 system configuration: 4-slot chassis with passive midplane and 1x fan tray, 1x routing engine, 1x switch fabric-2 module , 2x 2520W AC PSUs, and all necessary blank panels

EX9204 Base System Configuration, 4-Slot Chassis with Passive Midplane and 1x Fan Trays, 1x Routing Engines, 1x Switch Fabric Module s, 2x 2520W AC PSUs, and all necessary blank panels

Redundant EX9204 system configuration: 4-slot chassis with passive midplane and 1x fan tray, 2x routing engines, 2x switch fabric-2 modules, 4x 2520W AC PSUs, and all necessary blank panels

Redundant EX9204 system configuration: 4-slot chassis with passive midplane and 1x fan tray, 2x routing engines, 2x switch fabric-2 modules, 2x 2400W DC PSUs, and all necessary blank panels

EX9204 Redundant System Configuration, 4-Slot Chassis with Passive Midplane and 1x Fan Tray, 2x Routing Engines, 2x Switch Fabric Mo dules, 4x 2520W AC PSUs, and all necessary blank panels

EX9204 Redudant System Configuration, 4-Slot Chassis with Passive Midplane and 1x Fan Tray, 2x Routing Engines, 2x Switch Fabric Mod ules, 2x 2400W DC PSUs, and all necessary blank panels

Base EX9208 system configuration: 8-slot chassis with passive midplane and 1x fan tray, 1x routing engine, 1x switch fabric-2 module s, 3x 2520W AC PSUs, and all necessary blank panels

EX9208 Base System Configuration, 8-Slot Chassis with Passive Midplane and 1x Fan Trays, 1x Routing Engines, 1x Switch Fabric Module s, 3x 2520W AC PSUs, and all necessary blank panels

Redundant EX9208 system configuration: 8-slot chassis with passive midplane and 1x fan tray, 2x routing engines, 2x switch fabric-2 modules, 4x 2520W AC PSUs, and all necessary blank panels
