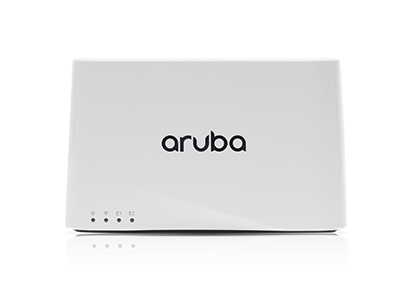

Точка доступа Aruba (HPE) JY721A

RAP-203R SERIES SPECIFICATIONS

·         Unified flexible radio 802.11ac remote AP with internal antennas.

·         Supports wall-box and desk mount deployments

WI-FI RADIO SPECIFICATIONS

·         AP type: Indoor, flex radio:

·         5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO¹, or

·         5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x1¹

·         Software-configurable radio supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1)

·         5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices

·         2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)

·         Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio

·         Supported frequency bands (country-specific restrictions apply):

·         2.400 to 2.4835GHz

·         5.150 to 5.250GHz

·         5.250 to 5.350GHz

·         5.470 to 5.725GHz

·         5.725 to 5.850GHz

·         Available channels: Dependent on configured regulatory domain

·         Dynamic frequency selection (DFS) optimizes the use of available RF spectrum

·         Supported radio technologies:

·         802.11b: Direct-sequence spread-spectrum (DSSS)

·         802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

·         Supported modulation types:

·         802.11b: BPSK, QPSK, CCK

·         802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

·         Transmit power: Configurable in increments of 0.5 dBm

·         Maximum (conducted) transmit power (limited by local regulatory requirements):

·         2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2 mode)

·         5GHz band: +18 dBm per chain, +21 dBm aggregate (2x2 mode)

·         Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain

·         Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks

·         Maximum ratio combining (MRC) for improved receiver performance

·         Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance

·         Short guard interval for 20MHz, 40MHz and 80MHz channels

·         Space-time block coding (STBC) for increased range and improved reception

·         Low-density parity check (LDPC) for high-efficiency error correction and increased throughput

·         Transmit beam-forming (TxBF) for increased signal reliability and range

·         Supported data rates (Mbps):

·         802.11b: 1, 2, 5.5, 11

·         802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

·         802.11n: 6.5 to 300 (MCS0 to MCS15)

·         802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

·         802.11n high-throughput (HT) support: HT 20/40

·         802.11ac very high throughput (VHT) support: VHT 20/40/80

·         802.11n/ac packet aggregation: A-MPDU, A-MSDU

WI-FI ANTENNAS

·         Two integrated dual-band omni-directional antennas for 2x2 MIMO with maximum individual antenna gain of 0.7dBi in 2.4GHz and 1.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP.

·         Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is -0.4dBi in 2.4GHz and 0.5dBi in 5GHz.

OTHER INTERFACES

·         Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)

·         Auto-sensing link speed and MDI/MDX

·         802.3az Energy Efficient Ethernet (EEE)

·         Local: Two 10/100/1000BASE-T Ethernet (RJ-45, back)

·         Auto-sensing link speed and MDI/MDX

·         802.3az Energy Efficient Ethernet (EEE)

·         One port (E2): PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE (AP-203RP models)

·         Bluetooth Low Energy (BLE) radio

·         Up to 4dBm transmit power (class 2) and -93dBm receive sensitivity

·         Integrated antenna with moderately directional pattern and peak gain of 1dBi

·         USB 2.0 host interface (Type A connector, top)

·         3G/4G cellular modems

·         Device battery charging port

·         Capable of supplying up to 1A/5 watts of power to an attached device

·         AC power interface, 2 prong IEC 60320-1 C8 receptacle (back)

·         Visual indicators (LEDs, front):

·         Power/system status

·         Radio status

·         Local network port status (2x)

·         Includes PoE-PSE status (AP-203RP models)

·         Reset/LED control button (“paperclip access”, bottom)

·         Factory reset (when activated during device power up)

·         LED control: toggle off/normal

·         Serial console interface (custom, uUSB physical jack, bottom)

ENCRYPTED THROUGHPUT

·         Maximum IPsec encrypted wired throughput: 20Mbps

POWER SOURCES AND CONSUMPTION

·         The AP supports direct AC power: 90V – 265V, 47Hz – 63Hz.

·         Note that the unit does not include an AC power cord (IEC C7 plug). A compatible region-specific cord should be selected and added when ordering the AP.

·         Maximum (worst-case) power consumption: 7.5W.

·         Excludes power consumed by external USB and/or PoE-PD device (and internal losses); this could add up to 6W for a 5W/1A USB device and up to 18W for a max load (15.4W) 802.3af PoE-PD device

·         Maximum (worst-case) power consumption in idle mode: 4.6W.

MOUNTING

·         The AP supports desk mount without additional accessories. A cover ships with the AP to hide connectors, cables and product labels.

·         The cover can be used to support wall mounted deployments as well.

MECHANICAL

·         Dimensions/weight (unit, with cable cover):

·         155mm (W) x 50mm (D) x 95mm (H)

·         320g (AP-203R), 340g (AP-203RP)

·         Dimensions/weight (shipping):

·         224mm (W) x 159mm (D) x 78mm (H)

·         510g (AP-203R), 590g (AP-203RP)

ENVIRONMENTAL

·         Operating:

·         Temperature: 0° C to +40° C (+32° F to +104° F)

·         Humidity: 5% to 93% non-condensing

·         Storage and transportation:

·         Temperature: -40° C to +70° C (-40° F to +158° F)

REGULATORY

·         FCC/Industry of Canada

·         CE Marked

·         R&TTE Directive 1995/5/EC

·         Low Voltage Directive 72/23/EEC

·         EN 300 328

·         EN 301 489

·         EN 301 893

·         UL/IEC/EN 60950

·         EN 60601-1-1 and EN 60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

RELIABILITY

·         MTBF at +25C° operating temperature:

·         AP-203R: 324,000 hours (37 years)

·         AP-203RP: 308,000 hours (35 years)

REGULATORY MODEL NUMBER

·         AP-203R-xx (all variants): APINR203

·         AP-203RP-xx (all variants): APINP203

CERTIFICATIONS

·         CB Scheme Safety, cTUVus

·         Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

MINIMUM SOFTWARE VERSION

·         ArubaOS™ 6.5.2.0/8.2.0.0

·         Aruba InstantOS™ 6.5.2.0/8.2.0.0
