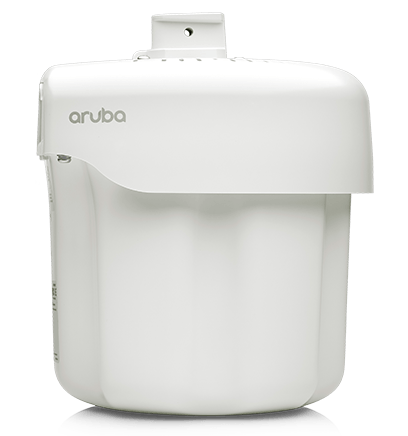

Точка доступа Aruba (HPE) R3P70A

UNIQUE FEATURES

·         Dual Radio 802.11ac access point with Multi-User MIMO

·         Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps in the 2.4 GHz band (with 2SS/HT40 clients).

·         Built-in Bluetooth support

·         Enables location-based services such as wayfinding and asset tracking.

·         Advanced Cellular Coexistence (ACC)

·         Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.

·         Extreme weather design

·         Sealed interfaces to lock out dust and moisture

·         Built-in QoS for unified communications

·         Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype and for Business applications with encrypted video-conferencing, voice, chat, and desktop sharing.

·         Best-in-class RF management

·         Integrated AirMatch technology manages the 2.4-GHz and 5-GHz radio bands and actively optimizes the RF environment.

·         Spectrum analysis

·         Part-time or dedicated air monitoring, that remotely scans the 2.4-GH and 5-GHz radio bands to identify sources of RF interference.

·         Wireless mesh support

·         Convenient AP connectivity and extension of Wi-Fi coverage where Ethernet drops are not available.

·         Intelligent app visibility and control

·         App visibility technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for 1000's of enterprise apps or groups of apps.

·         Aruba core hardware and software security

·         Use of Trusted Platform Module (TPM) for secure sotrage of credentials and keys as well as secure boot.

·         Integrated wireless intrusion protection offers threat protection and mitigation and eliminates the need for separate RF sensors and security appliances.

·         IP reputation and security services identify, classify, and block malicious files, URL and IPs, providing comprehensive protection against advanced online threats.

·         Encrypted IPsec VPN tunnels securely connect remote users to corporate network resources.

CHOOSE YOUR OPERATING MODE

·         The AP-370EX Series supports Aruba's unique dual operating system capability called Unified mode. The APs can be deployed with a controller or run in Instant mode and readily switched to accommodate changing network needs.

·         Controller mode: When managed by Aruba Mobility Controllers, Aruba-370EX Series offers centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding or,

·         Controllerless (Instant) mode: In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – Instant Network.

·         Other functional modes include:

·         Remote AP (RAP) mode for branch deployments

·         Air monitor (AM) for wireless IDS, rogue detection and containment

·         Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference

·         Secure enterprise mesh

·         Hybrid AP serves Wi-Fi clients and provides wireless intrusion protection and spectrum analysis

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Unified APs are factory-shipped to any site and configure themselves when powered up.

AP-370EX SERIES SPECIFICATIONS

·         AP-375EX

·         5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)

·         Internal Omni Antennas 4.6 dBi

·         2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios

·         Internal Omni Antennas 4.0 dBi

·         AP-377EX

·         5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)

·         Internal 80°H x 80°V Directional Antennas 6.3 dBi

·         2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios

·         Internal 80°H x 80°V Directional Antennas 6.4 dBi

WI-FI RADIO SPECIFICATIONS

·         AP type: Outdoor Hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO

·         Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)

·         5 GHz:

·         Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously

·         Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices

·         2.4 GHz:

·         Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices

·         Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio

·         Supported frequency bands (country-specific restrictions apply):

·         2.400 to 2.4835 GHz

·         5.150 to 5.250 GHz

·         5.250 to 5.350 GHz

·         5.470 to 5.725 GHz

·         5.725 to 5.850 GHz

·         5.825 to 5.875 GHz

·         Available channels: Dependent on configured regulatory domain.

·         Dynamic frequency selection (DFS) maximizes the use of available RF spectrum.

·         Supported radio technologies:

·         802.11b: Direct-sequence spread-spectrum (DSSS)

·         802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

·         Supported modulation types:

·         802.11b: BPSK, QPSK, CCK

·         802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

·         Transmit power: Configurable in increments of 0.5 dBm

·         Maximum (conducted) transmit power (limited by local regulatory requirements):

·         2.4 GHz band: +25 dBm per chain, +28 dBm aggregate (2x2)

·         5 GHz band: +22 dBm per chain, +28 dBm aggregate (4x4)

·         Note: conducted transmit power levels exclude antenna gain.

·         Maximum EIRP (limited by local regulatory requirements):

·         2.4 GHz band:

·         375EX: 32.0 dBm EIRP

·         377EX: 34.4 dBm EIRP

·         5 GHz band:

·         375EX: 35.6 dBm EIRP

·         377EX: 36 dBm EIRP

·         Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks.

·         Maximum ratio combining (MRC) for improved receiver performance.

·         Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance.

·         Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels.

·         Space-time block coding (STBC) for increased range and improved reception.

·         Low-density parity check (LDPC) for high-efficiency error correction and increased throughput.

·         Transmit beam-forming (TxBF) for increased signal reliability and range.

·         Supported data rates (Mbps):

·         802.11b: 1, 2, 5.5, 11

·         802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

·         802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)

·         802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)

·         802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)

·         802.11n high-throughput (HT) support: HT 20/40

·         802.11ac very high throughput (VHT) support: VHT 20/40/80/160

·         802.11n/ac packet aggregation: A-MPDU, A-MSDU

POWER

·         Worst-case power consumption from the AP: 23W

·         Power sources sold separately

·         Power over Ethernet (PoE+): 802.3at-compliant

OTHER INTERFACES

·         One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)

·         Autosensing link speed and MDI/MDX

·         802.3az Energy Efficient Ethernet (EEE)

·         One 1000BASE-X SFP Port

·         C1D1 certification is pending

·         Bluetooth Low Energy (BLE) radio

·         Up to 4 dBm transmit power (class 2) and 91 dBm receive sensitivity

·         Visual indicator (multi-color LED): For system and radio status

·         Reset button: Factory reset (during device power up)

·         Micro USB console interface

·         Kensington security slot

MOUNTING

·         AP-270-MNT-V1

·         AP-270-MNT-V2

·         AP-270-MNT-H1

·         AP-270-MNT-H2

MECHANICAL

·         AP-375EX

·         Dimensions/weight (excluding mount):

·         23 cm (W) x 24 cm (D) x 27 cm (H)

·         9.0" (W) x 9.4" (D) x 10.6" (H)

·         2.4 kg / 5.3 lbs

·         AP-377EX

·         Dimensions/weight (excluding mount):

·         23 cm (W) x 22 cm (D) x 13 cm (H)

·         9.0" (W) x 8.7" (D) x 5.1" (H)

·         2.1 kg / 4.6 lbs

ENVIRONMENTAL

·         Operating:

·         Temperature: -40° C to +60° C (-40° F to +140° F)

·         Humidity: 5% to 95% noncondensing

·         Storage and transportation:

·         Temperature: -40° C to +70° C (-40° F to +158° F)

·         Operating Altitude: 3,000 m

·         Water and Dust

·         IP66/67

·         Salt Tolerance

·         Tested to ASTM B117-07A Salt Spray 200hrs

·         Wind Survival: Up to 165 Mph

·         Shock and Vibration ETSI 300-19-2-4

REGULATORY

·         FCC/ISED

·         CE Marked

·         RED Directive 2014/53/EU

·         EMC Directive 2014/30/EU

·         Low Voltage Directive 2014/35/EU

·         UL/IEC/EN 60950

·         EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

REGULATORY MODEL NUMBERS

·         AP-375EX: APEX0375

·         AP-377EX: APEX0377

CERTIFICATIONS

·         CB Scheme Safety, cTUVus

·         UL2043 plenum rating

·         Wi-Fi Alliance certified 802.11a/b/g/n

·         Wi-Fi CERTIFIED™ ac (with wave 2 features)

·         Passpoint^® (Release 2) with ArubaOS and Instant 8.3+
