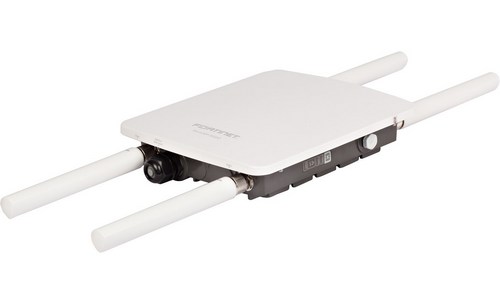

Точка доступа Fortinet FAP-222C

SKU
FAP-222C
Запросить цену
EAN: 16326
GPL price:
1295 $
Состояние: Новое
Наличие: Доступен под заказ
Срок поставки: 25-35 дней
Outdoor Wireless AP — 1x GE RJ45 port, dual radio (802.11 a/n/ac and 802.11 b/g/n, 2x2 MIMO), external antennas, ceiling/wall mount kit included, proprietary PoE injector with AC power adapter included.

Технические характеристики точки доступа Fortinet FAP-222C:



FORTIAP 222C

Hardware Type

Outdoor AP

Number of Radios

2

Number of Antennas

4 External

Antenna Type and Peak Gain

Dipole: 3.5 dBi for 2.4 GHz, 6 dBi for 5 GHz

Frequency Bands (GHz)*

2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850

Radio 1 Capabilities

2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (64 QAM)

Radio 2 Capabilities

5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM)

Maximum Data Rate

Radio 1: Up to 300 Mbps, Radio 2: Up to 867 Mbps

Interfaces

1x GE RJ45

Power over Ethernet (PoE)

IEEE 802.3at or proprietary PoE injector

Simultaneous SSIDs

Up to 16 (14 if background scanning enabled)

EAP Type(s)

EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST

User/Device Authentication

WPA™ and WPA2™ with 802.1x or Preshared key, WEP,  Web Captive Portal, MAC blacklist & whitelist

Maximum Tx Power

2.4 GHz: 30 dBm / 1 W (2 chains combined), 5 GHz: 27 dBm / 501 mW (2 chains combined)

Kensington Lock

No

IEEE Standards

802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af

SSID Types Supported

Local-Bridge, Tunnel, Mesh

Per Radio Client Capacity

Up to 128

Cellular Co-existence

No

LED Off Mode

Yes

802.11ac MU-MIMO Wave 2

No

Transmit Beam Forming (TxBF)

No

Low-Density Parity Check (LDPC) Encoding

Yes

Maximum Likelihood Demodulation (MLD)

Yes

Maximum Ratio Combining (MRC)

Yes

A-MPDU and A-MSDU Packet Aggregation

Yes

MIMO Power Save

Yes

Short Guard Interval

Yes

Rogue Scan Radio Modes

Background, Full-time

WIPS / WIDS Radio Modes

Background, Full-time

Packet Sniffer Mode

Yes

Spectrum Analyzer

Yes

Length x Width x Height

9.8x 8.7 x 2.1 inches, (249 x 220 x 53 mm)

Weight

3.68 lbs (1.67 kg)

Package (shipping) Weight

9.1 lbs (4.31 kg)

Mounting Options

Wall Mount or Pole Mount

Included Accessories

Mounting kit for wall or pole, Grounding Cable, PoE injector, 4
dipole antennas, surge protector (GPI-SGPT)

Power Supply

SP-FAP222B-PA (includes PoE injector) +
SP-ADAPTORPLUG-01-XX, GPI-115, or GPI-130

Power Consumption (Maximum)

18.4 W

Humidity

5–90% non-condensing

Operating / Storage Temperature

-40–140°F (-40–60°C) / -40–158°F (-40–70°C)

Directives

Low Voltage Directive • RoHS

UL2043 Plenum Material

No

Mean Time Between Failures

>15 Years

IP Rating

IP67

Surge Protection Built In

Hit-less PoE Failover

No
