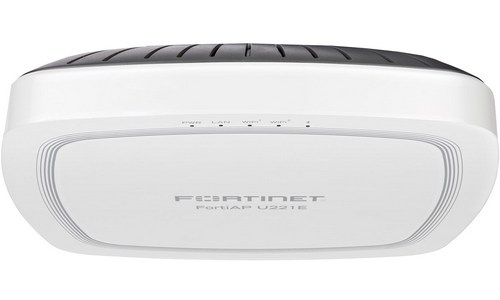

Точка доступа Fortinet FAP-U221EV

FORTIAP U221EV

Hardware Type

Indoor AP

Number of Radios

2 + 1 BT/BLE

Number of Antennas

4 Internal + 1 BT/BLE Internal

Antenna Type and Peak Gain

Patch: 3 dBi for 2.4 GHz, 4 dBi for 5 GHz

Frequency Bands (GHz)

2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725,

5.725–5.850

Radio 1 Capabilities

2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (64 QAM)

Radio 2 Capabilities

5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM)

Maximum Data Rate

Radio 1: up to 300 Mbps

Radio 2: up to 867 Mbps

Bluetooth Low Energy (BT/BLE) Radio

Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power

Interfaces

1x 10/100/1000 Base-T RJ45, 1x Type A USB

Power over Ethernet (PoE)

IEEE 802.3af or 802.3.at

Simultaneous SSIDs

Up to 16 (14 if background scanning enabled)

EAP Type(s)

EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST

User/Device Authentication

WPA™ and WPA2™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist

Maximum Tx Power (Conducted)

2.4 GHz: 25 dBm / 316 mW (2 chains combined)* 5 GHz: 23 dBm/ 200 mW (2 chains combined)*

Kensington Lock

Yes

IEEE Standards

802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,

802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af,

802.3at, 802.3az

SSID Types Supported

Local-Bridge, Tunnel & Mesh

Per Radio Client Capacity

Up to 128

Cellular Co-existence**

Yes

LED Off Mode

Yes

802.11ac MU-MIMO Wave 2

No

Transmit Beam Forming (TxBF)

Yes

Low-Density Parity Check (LDPC) Encoding

Yes

Maximum Likelihood Demodulation (MLD)

Yes

Maximum Ratio Combining (MRC)

Yes

A-MPDU and A-MSDU Packet Aggregation

Yes

MIMO Power Save

Yes

Short Guard Interval

Yes

Rogue Scan Radio Modes

Background, Dedicated

WIPS / WIDS Radio Modes

Background, Dedicated (recommended)

Packet Sniffer Mode

Yes

Spectrum Analyzer

Yes

Length x Width x Height

7.87 x 7.87 x 1.5 inches (200 x 200 x 40 mm)

Weight

1.2 lbs (0.55 kg)

Package (shipping) Weight

2.5 lbs (1.15 kg)

Mounting Options

Ceiling, T-Rail and Wall

Included Accessories

Mount kits for Ceiling, T-Rail and Wall

Power Supply

SP-FAP200-PA-XX, GPI-115, or GPI-130

Power Consumption (Maximum)

12.5 W

Humidity

5–90% non-condensing

Operating / Storage Temperature

32–122°F (0–50°C) / -40–158°F (-40–70°C)

Directives

Low Voltage Directive • RoHS

UL2043 Plenum Material

No

Mean Time Between Failures

>3 Years

IP Rating

—

Surge Protection Built In

—

Hit-less PoE Failover

No
